See what needs attention
One operational view of asset condition, overdue work, active faults and compliance gaps.
Industrial operations · maintenance · complianceIndustrial operations platform
Every asset. Every decision.One controlled history.
Pointnode gives engineering teams one live operating picture for asset condition, inspections, work, records and handover.
Controlled
asset records
Traceable
engineering decisions
Field-ready
mobile workflows
Defensible
compliance evidence
Built around the shift
Less searching. Less ambiguity. Better engineering decisions.
Pointnode organises the day around what engineers and operations leaders actually need to know next.
Move work forward
Engineers receive clear priorities, complete controlled work and leave an auditable record.
Prove what happened
Inspection reports, evidence, service history and sign-off stay attached to the asset.

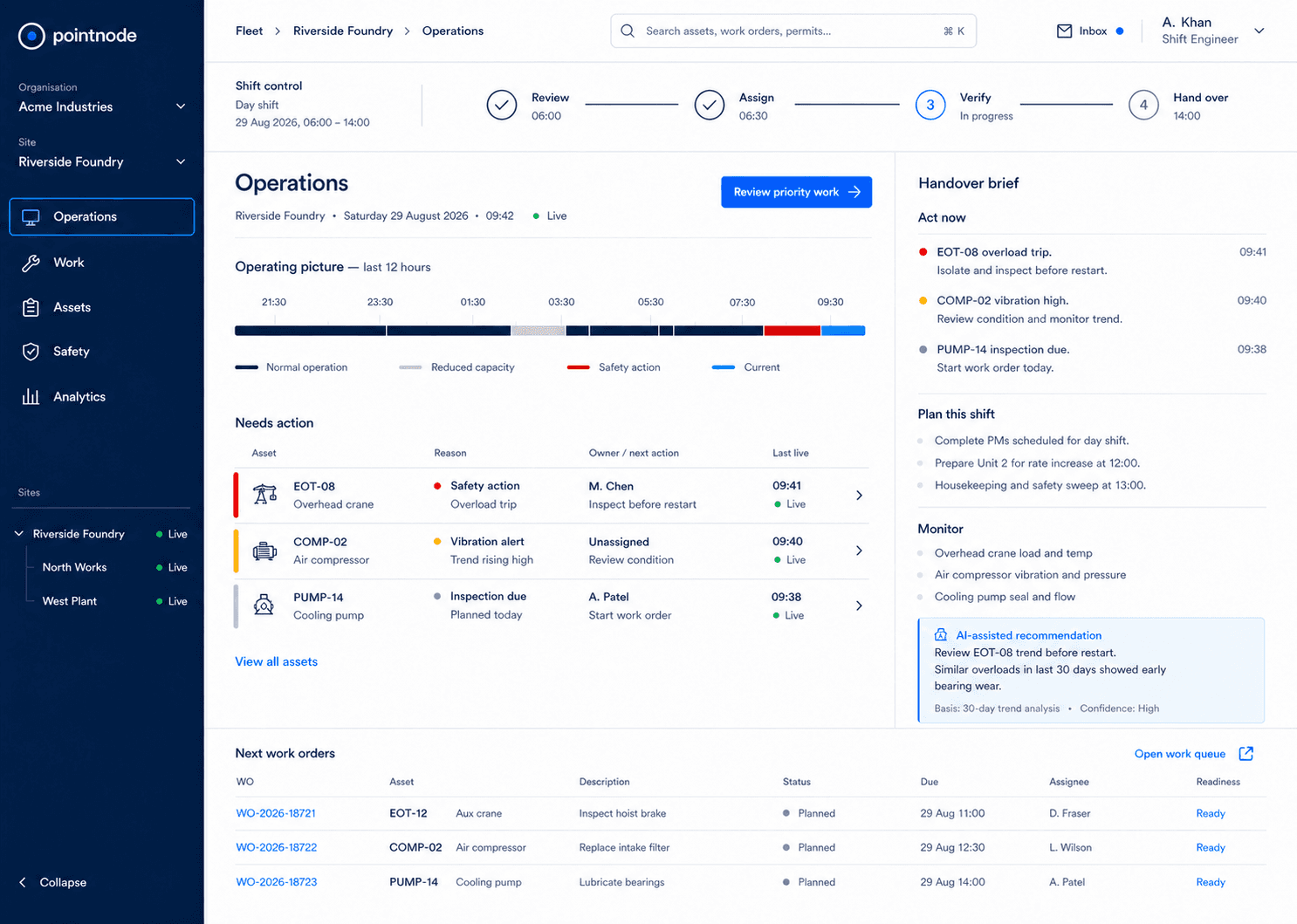

Operations overview
The whole estate, without the dashboard noise.
A calm briefing surface makes exceptions obvious and keeps routine work compact. Leaders can scan it; engineers can act from it.
- Current fleet health and availability
- Faults ranked by operational consequence
- Work orders and inspections in context
- Plain-language status with exact timestamps

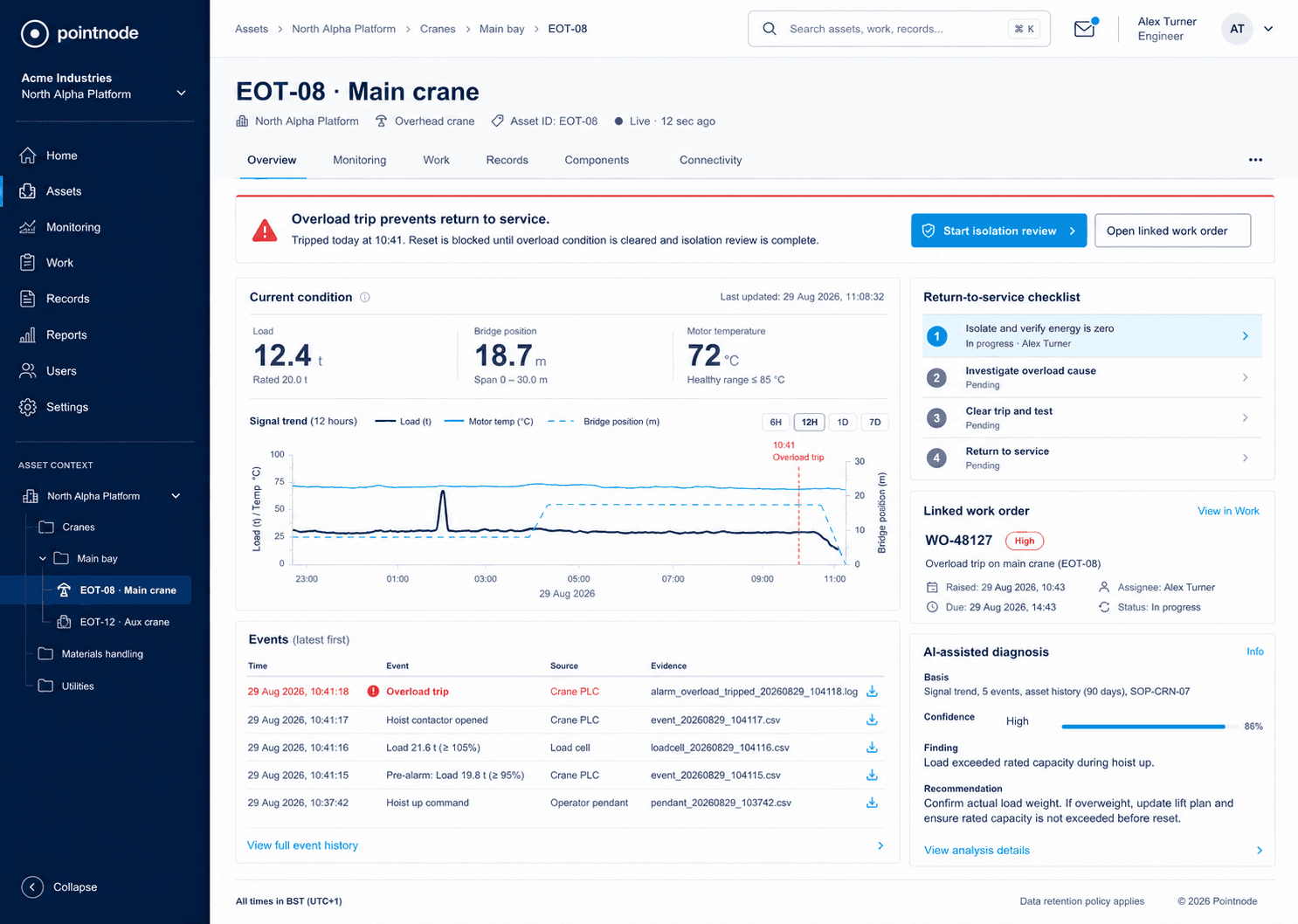

Asset passport
The working truth follows the asset.
Identity, condition, inspections, defects, maintenance, documents and telemetry stay in one navigable history—from commissioning to handover.
One source of truth
No separate folders, inbox archaeology or duplicate asset registers.
Live condition in context
Telemetry supports the engineering record instead of becoming another dashboard silo.
Work connected to evidence
Every job can trace back to the defect, inspection or signal that created it.
Edge gateway · and every other way in
Reach the plant floor without opening it up.
The Pointnode Edge Gateway sits on the plant network, reads what your existing controllers already hold, and carries it outward to Pointnode Cloud. No PLC firmware change, no inbound firewall rule, no VPN into the site. Where the equipment can send for itself — a wireless sensor, a controller that speaks MQTT — it comes straight to the platform instead, with no Pointnode hardware on site at all.
Through the Edge Gateway
Pointnode reaches out and reads
Modbus TCP
AvailableHolding registers, input registers, coils and discrete inputs from PLCs, drives, meters and protocol gateways — with a unit ID per device behind a serial gateway. Read-only: the driver contains no write function codes at all.
S7 over ISO-on-TCP
AvailableClassic read-only S7 over ISO-on-TCP — data blocks, markers, inputs and outputs, addressed by rack and slot on S7-300, 400, 1200 and 1500. Read-only by construction: there is no write path, no control and no program access.
OPC UA over opc.tcp
AvailableCertificate-verified, encrypted sessions — Basic256Sha256, sign-and-encrypt, no automatic downgrade — addressed by namespace-URI node IDs. Reads scalar process values; writes and method calls are not present.
Straight to the platform
The data comes to us — nothing of ours on site
LoRaWAN
AvailableFor the assets that will never justify a PLC — tanks, pumps, compressors, switchgear. Uplinks arrive from your own network server (The Things Stack, ChirpStack, or a bridge posting the documented JSON) at a webhook address and secret you generate yourself in the app. Register the device against the asset, map its fields to metrics, and the readings land on the same dashboards as PLC telemetry.
MQTT over mutual TLS
AvailableA controller or gateway you already own publishes to us directly, authenticated by a certificate issued per asset from Pointnode’s own certificate authority and revealed once when the asset is created. A customer asset runs this way in production today, with no Pointnode hardware anywhere on the site.
REST over HTTPS
PlannedNot yet — and we would rather say so here than have you discover it during an integration. Tokens can be generated in the app and the reference documents the first endpoints, but the gateway behind them is not switched on, and version one reads rather than writes: there is no ingest endpoint even in the planned set. Until it lands, an HTTPS integration comes in through the LoRaWAN webhook, against a device registered to the asset.
Those states are read out of the gateway’s driver registry and out of what is actually deployed, not from a roadmap. A driver that has not passed its hardware validation is refused by the gateway rather than quietly connecting and returning nothing, and anything we have not switched on yet says so above — we would rather tell you a route is not ready than have you find out from a flat line on a chart.
Outbound only
The gateway dials Pointnode over mutual TLS. Pointnode never dials the gateway. No inbound firewall rule, no port forward, no VPN into the plant — and the gateway’s own management interface binds to localhost unless someone deliberately widens it.
A certificate per gateway
Each gateway generates its own private key, which never leaves the appliance, enrols it with a single-use setup code, and renews the certificate automatically before expiry. A shared broker password is refused outright in production mode.
An approved target list
Commissioning records the exact address and port of every device the gateway may reach. With that boundary enforced the gateway opens no other socket, and it resolves, checks and dials the same address so a changed DNS answer cannot move the connection.
Read-only by construction
There is no write path from Pointnode to your plant. The Modbus implementation contains no write function codes at all — not unused, absent — so “we never call it” is a structural fact rather than a convention.

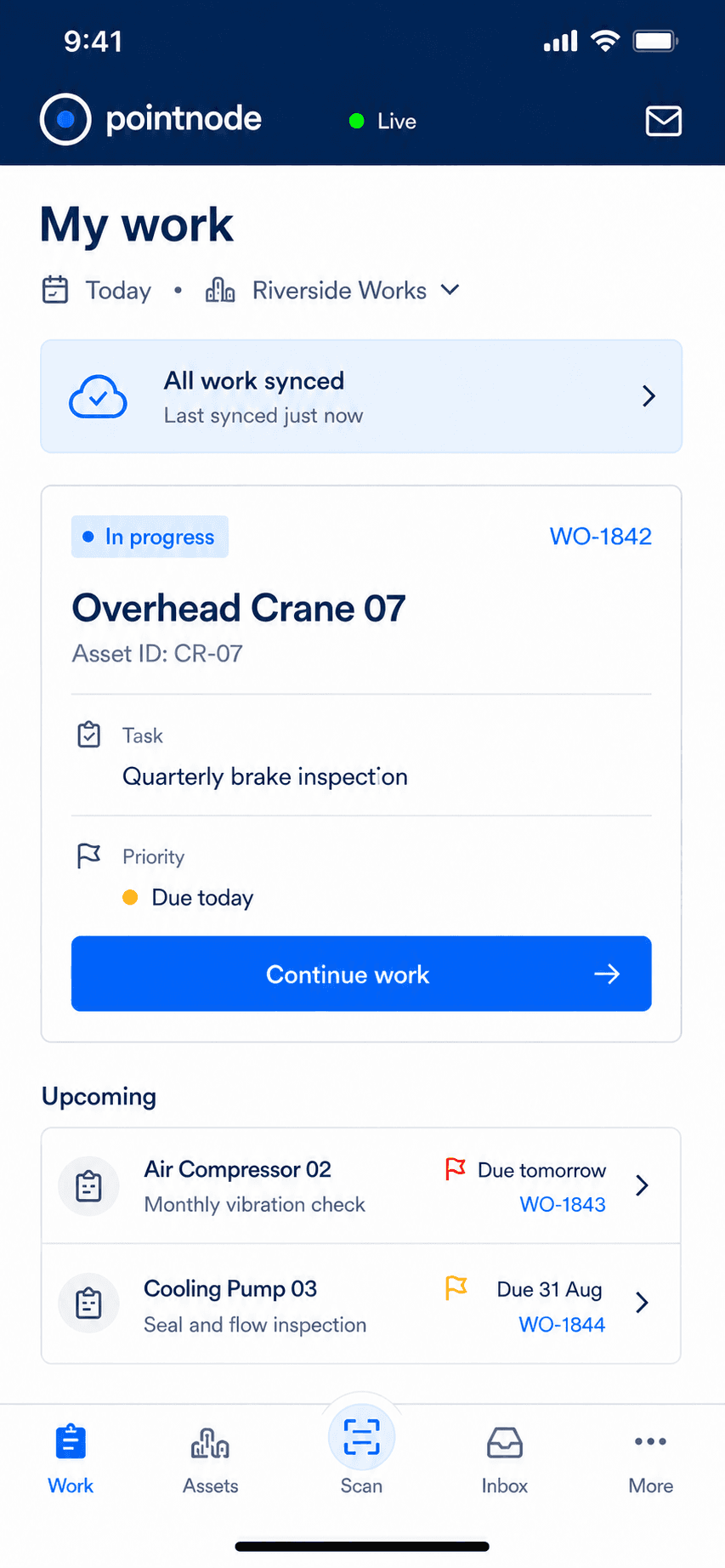

Native iOS · field work
A work view engineers can understand in gloves, noise and poor signal.
Today’s priorities, the asset, the task and the next action stay obvious. Work is designed to continue offline and sync clearly when coverage returns.
44 pt touch targets
Compact visually, dependable physically.
Scan to the right asset
Move from QR or tag to the live passport.
Controlled completion
Evidence, notes and sign-off stay in sequence.
Explicit sync state
No guessing whether field work is safely stored.
Enterprise control
Simple on the surface. Serious underneath.
The platform keeps day-to-day work direct while preserving the controls, traceability and evidence expected in industrial estates.
Role-based access and organisation boundaries
Complete audit history and controlled records
Offline-capable engineer workflows
Operational states that never rely on colour alone
Bring the operation into one view
